FEATURES

SPECIFICATIONS

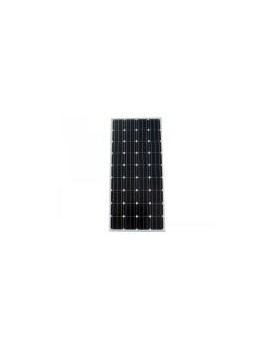

 SOLAR PANEL COMPOSE OF MULTI-CRYSTAL SOLAR CELL WITH AN EFFICIENCY OF OVER 17%.  RIGID SOLAR PANELS ARE CONSTRUCTED USING A TEMPERED GLASS FRONT, EVA POTTANT AND A PVF BACKING TO PROVIDE MAXIMUM PROTECTION FROM THE MOST SEVERE ENVIRONMENTAL CONDITIONS. THE ENTIRE LAMINATE IS FRAMED IN A HEAVY DUTY ANODIZED ALUMINUM FRAME TO PROVIDE STRUCTURAL STRENGTH AND EASE OF INSTALLATION. THIS TRANSLATES TO BOTH MORE WATTAGE PER SQUARE FOOT AND LOWER MOUNTING STRUCTURE COST

 RELATED POWER 5W

RELATED POWER 5W

VOC 18.2V

VOP 17.3V

SHORT CIRCUIT CURRENT (ISC) 0.27A

WORKING CURRENT (IOP) 0.29A

OUTPUT TOLERANCE ±3%

TEMPERATE COEFFICIENT OF ISC (010+/- 0.01 )%/ ℃

TEMPERATE COEFFICIENT OF VOC - (0.38 +/-0.01 )%/ ℃

TEMPERATE COEFFICIENT OF POWER VOC -0.47%/℃

TEMPERATURE RANGE -40℃TO +80℃

SLA BATTERY VOLTAGE 12V
