SAYD 2204SD-21

FEATURES

SPECIFICATIONS

PACKAGE INCLUDED

CAN BE APPLIED TO VARIES DC APPLIANCE, IDEAL FOR EVERYDAY USE

HIGH EFFENCY SOLAR CELLS, SMALL IN SIZE AND EASY TO TAKE

WATER-PROOF SOLAR PANEL WITH LONG LASTING ALUMINUM FRAME PROVIDES OVER 20 YEARS LIFESPAN.

3A 12V/24V PWM CHARGE CONTROLLER, OVERCHARGE AND OVER DISCHARGE PROTECTION FOR THE BATTERY

BATTERY CLIPS WITH 2M EXTENSION WIRE, EASY AND CONVENIENT FOR OPERATION

RETED POWER  25W

VOC       22.41V

VOP       17.9V

SHORT CIRCUIT CURRENT (ISC)      1.54A

CURRENT (IOP)  1.4A

OUTPUT TOLERANCE     ±3%

TEMPERATE COEFFICIENT OF ISC         (010+/- 0.01) %/ ℃

TEMPERATE COEFFICIENT OF VOC       - (0.38 +/-0.01) %/ ℃

TEMPERATE COEFFICIENT OF POWER VOC       -0.47%/℃

TEMPERATURE RANGE  -40℃TO +80℃

FRAME  HEAVY DUTY ALUMINUM

KIND OF CONNECTION                WATERPROOF JUNCTION BOX, CAN BE CUSTOMIZED

GUARANTEE OF POWER                90% WITHIN 10 YEARS  80% WITHIN 25 YEARS

KIND OF GLASS AND ITS THICKNESS        LOW IRON, HIGH TRANSPARENCY TEMPERED GLASS OF 3.2MM

SLA BATTERY VOLTAGE 12V

DIMENSIONS (L X W X H)MM                520*365*18（20.47*14.37*0.71IN）

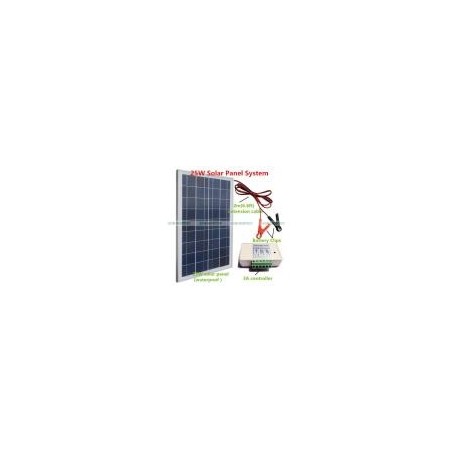

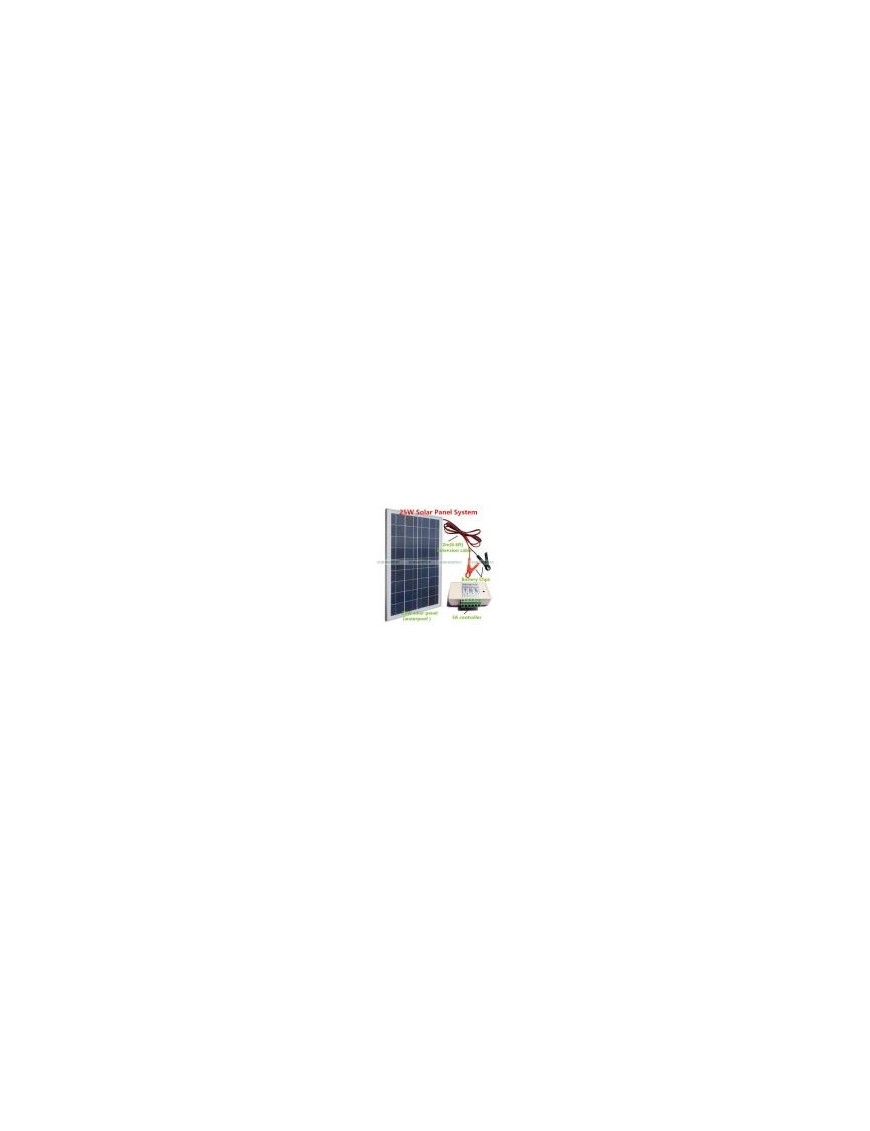

1PCS 25W POLY SOLAR PANEL WITH 1M CABLE

1PCS 3A 12V/24V SOLAR CHARGE CONTROLLER

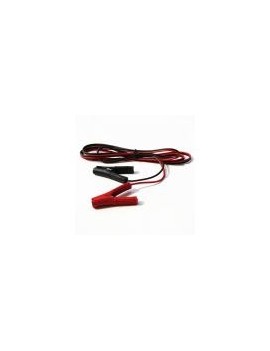

2M EXTENSION CABLE WITH BATTERY CLIPS
