ABB 1SVR427030R0000

ABB  1SVR427030R0000

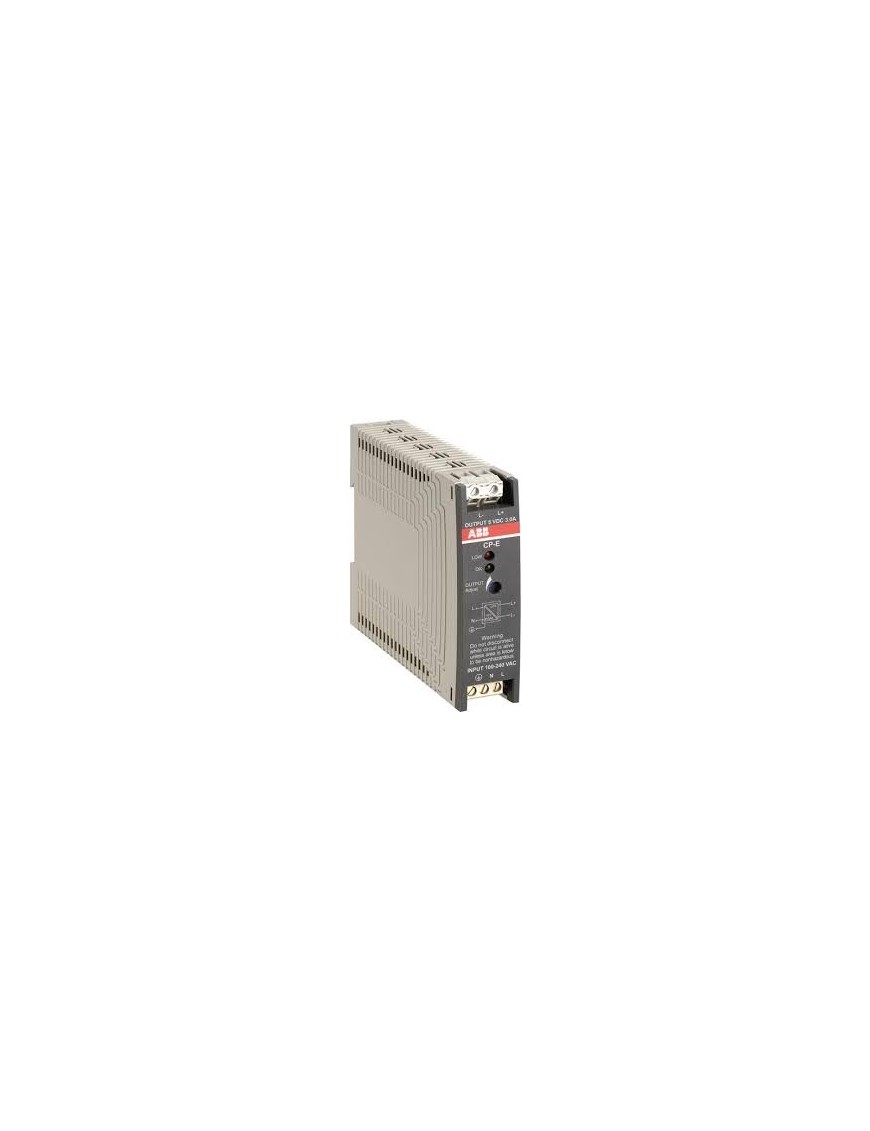

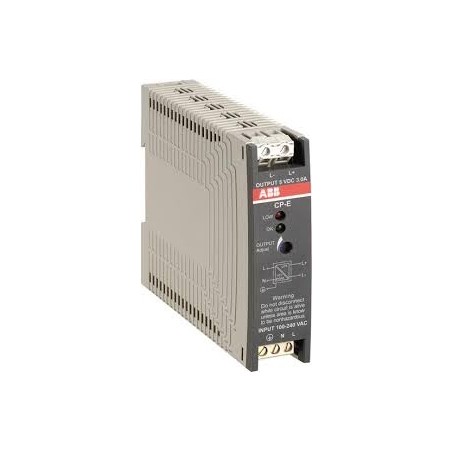

CP-E 24/0.75 POWER SUPPLY IN:100-240VAC OUT: 24VDC/0.75A  THE CP-E 24/0.75 IS A POWER SUPPLY FROM THE CP-E RANGE. THE PRIMARY SWITCH MODE POWER SUPPLY OFFERS A WIDE RANGE INPUT OF 90-264 V AC AND 120-375 V DC, RATED INPUT VOLTAGE IS 100-240 V AC. THE RATED OUTPUT POWER IS 18 W, RATED OUTPUT CURRENT IS 0.75 A AT AN OUTPUT VOLTAGE OF 24 V DC. THE OUTPUT VOLTAGE IS ADJUSTABLE WITHIN A RANGE OF 21.6 TO 28.8 V DC. THE OUTPUT CHARACTERISTIC IS HICCUP-MODE. THE POWER SUPPLY ALLOWS PARALLEL OPERATION TO ENABLE REDUNDANCY. A REDUNDANCY UNIT IS AVAILABLE AS ACCESSORY.
