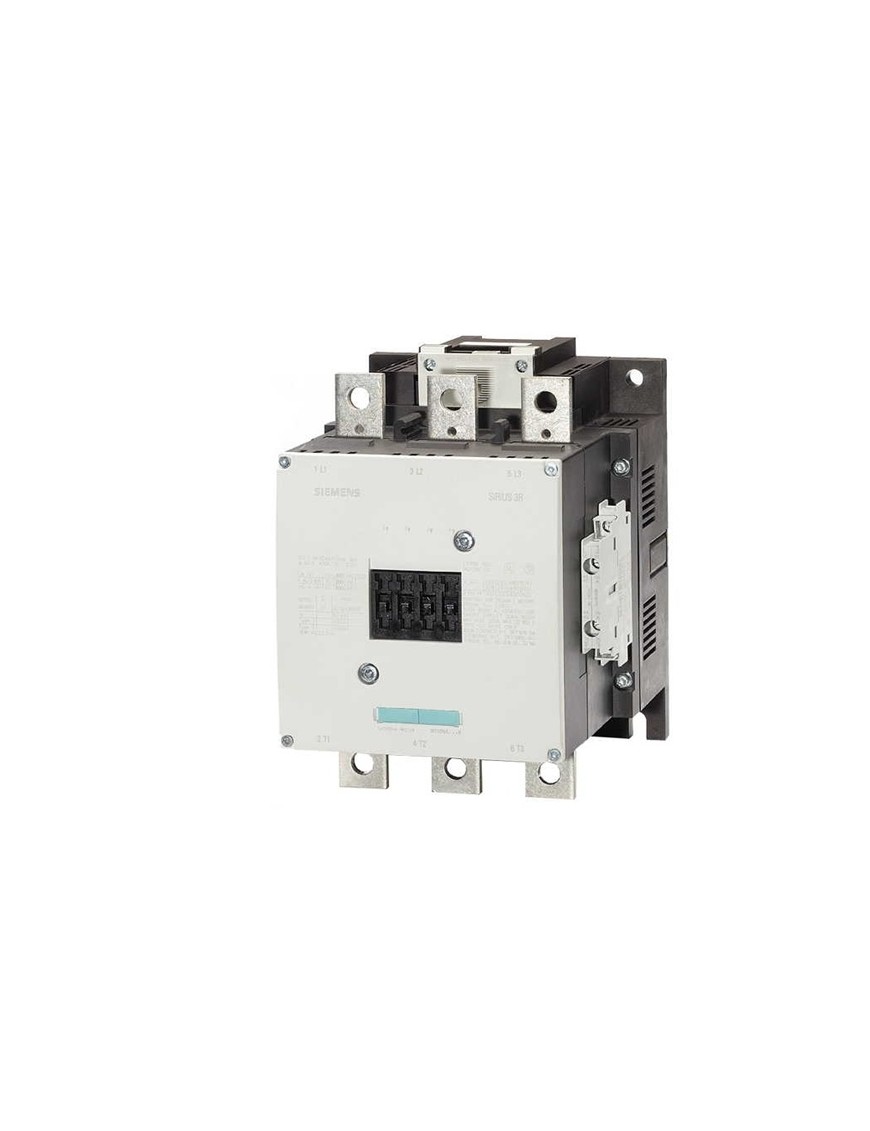

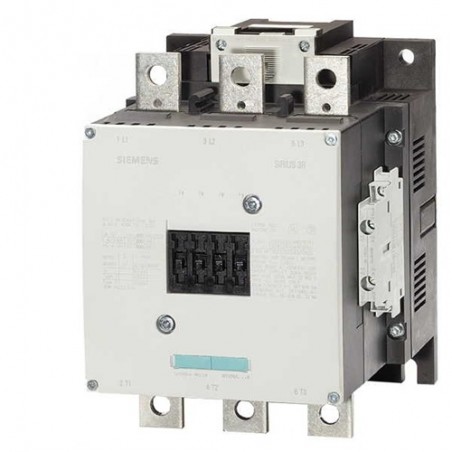

SIEMENS 3RT1075-6AP36
Contactor
Contactor
Siemens low voltage control 3RT contactors are of a compact size enabling electrical cabinets to be configured with high packing density, futhermore the auxiliary switch blocks and solenoid protective circuitry are located within the contours of the contactor. This makes it easier to expand the system and saves considerable space in the electrical cabinet.
Siemens Sirius 3RT1075-6A is a heavy-duty industrial motor starter contactor, suitable for starting 3-phase motors up to 150 HP @ 230 volts and 300 HP @ 460 volts. Auxiliary contacts can be front or side mounted. Plug-in overload relays are also available. All coils will work on both AC (40/50/60 Hz) and DC
CONTACTOR, 200KW/400V/AC-3 AC(40...60HZ)/DC OPERATION UC 220- 240V AUXILIARY CONTACTS 2NO+2NC 3-POLE, SIZE S12 BAR CONNECTIONS CONVENT. OPERATING MECHANISM SCREW TERMINAL
