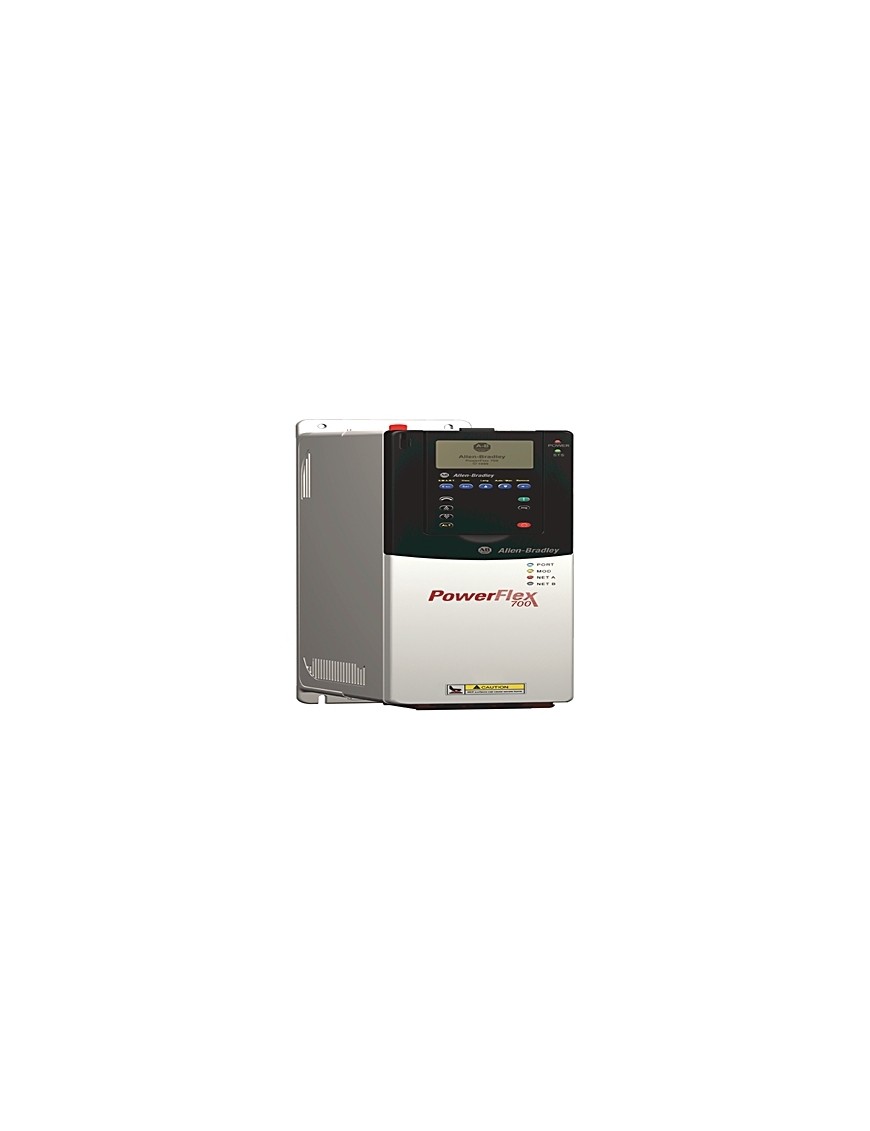

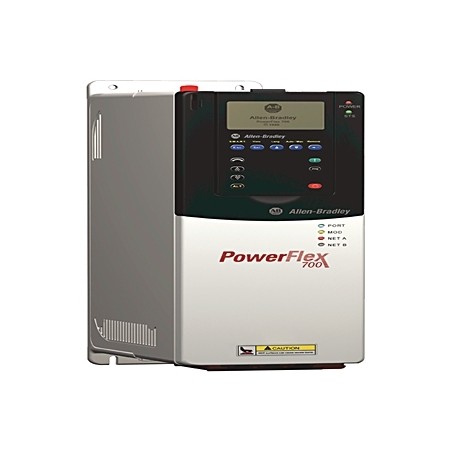

PowerFlex 700 AC Drive 20B
PowerFlex 700 AC Drive 20B
PowerFlex® 700 AC Drives are available in a wide range of horsepower ratings. These drives control three-phase induction motors in applications with requirements ranging from the simplest speed control to the most demanding torque control. The PowerFlex 700 AC drive offers application-specific features and parameters for lifting, oil wells, and speed and positioning applications. Available packaged drives provide additional control, power, and enclosure options in standardized designs. The PowerFlex 700 Fan and Pump packaged drive is a cost-effective solution for speed control in variable torque fan and pump applications.
PowerFlex 700 AC Drive 20BPowerFlex700 AC Drive, 480 VAC, 3 PH, 180 Amps, 150 HP Normal Duty, 125 HP Heavy Duty, IP20 / Type 1, No HIM (Blank Plate), No Brake IGBT, Without Drive Mounted Brake Resistor, Second Environment Filter per CE EMC directive (89/336/EEC), No CommunicationSpecificationsBase Plus Options: Base Plus Options MethodBrake IGBT: No Brake IGBTBrake Resistor: No Brake ResistorControl: No Communication ModuleDisplay: No HIM (Blank Plate)Enclosure: IP20 / Type 1, with conformal coatingFilter Options: Second Environment Filter per CE EMC directive (89/336/EEC)Internal Communication Module: No Communication ModuleOutput: 180 AmpsOutput Current Information: Output Amps: 180A Cont, 198A 1 Min, 270A 3 SecRelay Contact: Vector Control with 24V I/OSize: Frame Size 6Sub Brand: PowerFlex 700Voltage Rating: 480 VAC, 3 PH
Ficha de datos
PowerFlex 700 AC Drive 20B
