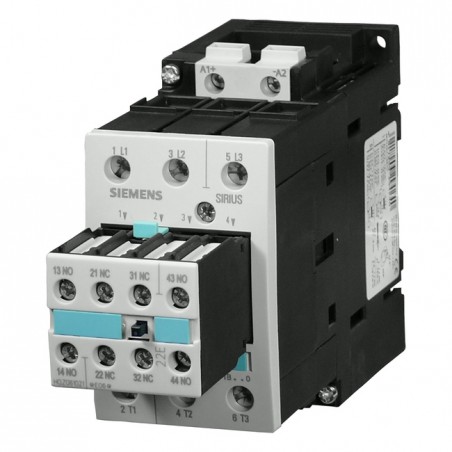

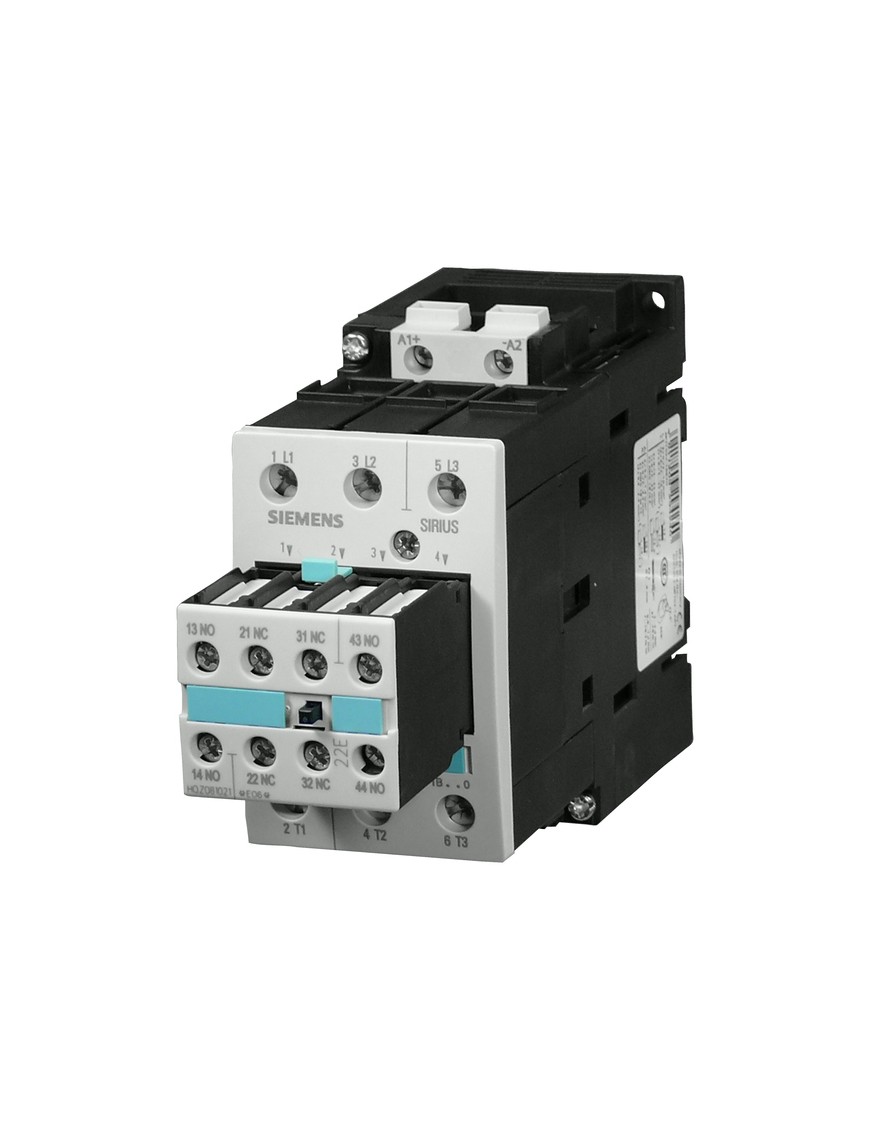

SIEMENS 3RT1034-1BB44

Contactor, AC-3 15 KW/400 V, DC 24 V, 3-Pole, 2 NO + 2 NC, SIZE S2, Screw Connection

Magnet contactor 32A 0VAC 24VDC Rated control supply voltage Us at AC 50HZ 0V, Rated control supply voltage Us at AC 60HZ 0V, Rated control supply voltage Us at DC 24 ... 24V, Voltage type for actuating DC, Rated operation current Ie at AC-1, 400 V 50A, Rated operation current Ie at AC-3, 400 V 32A, Rated operation power at AC-3, 400 V 15kW, Rated operation current Ie at AC-4, 400 V 29A, Rated operation power Ie at AC-4, 400 V 15kW, Modular version, Number of auxiliary contacts as normally open contact 2, Number of auxiliary contacts as normally closed contact 2, Connection type main current circuit Screw connection, Number of normally closed contacts as main contact 0, Number of main contacts as normally open contact 3.

Ficha técnica
