SIEMENS 3RT1056-6AP36
Write your review
0,00 $
Sin impuestos
Sirius Contactor
Sirius Contactor

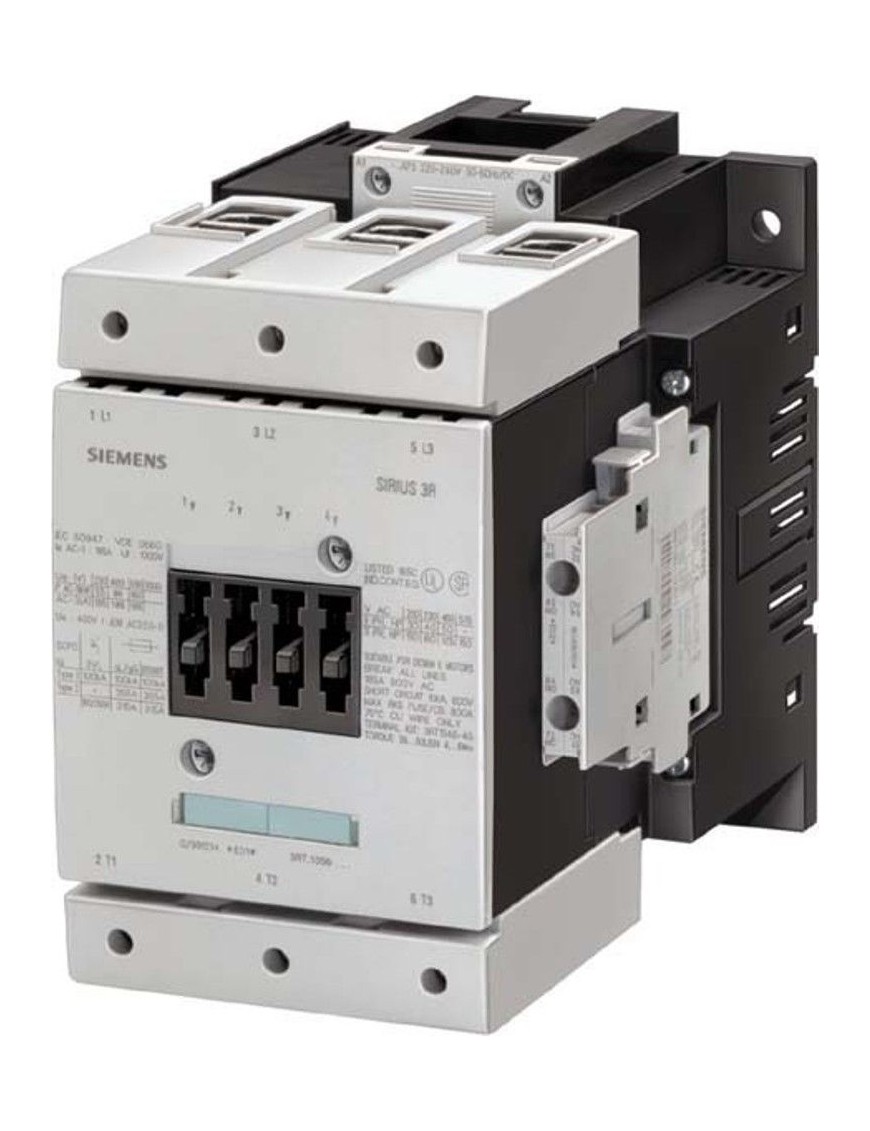

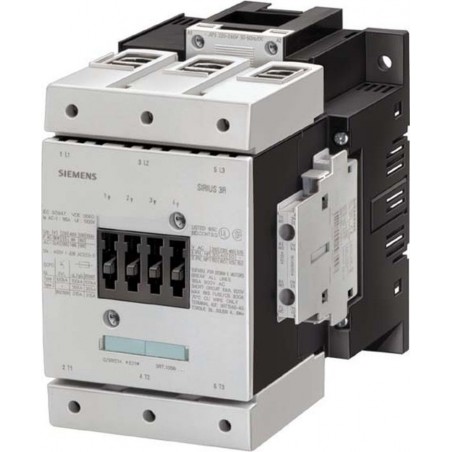

Siemens 3RT1056-6AP36 IEC 215 AMP Sirius contactor with a 220v-240vAC coil and 2 N.O. and 2 N.C. base mounted auxiliary contacts.The contactors can be equipped with a maximum of 8 auxiliary contacts, with identical auxiliary switch blocks from S0 to S12. Of these, no more than 4 are permitted to be NC contacts.The magnetic coil is switched on and off directly with the control supply voltage Us via terminals A1/A2.To allow easy coil changing, for example if the application is changed, the magnetic coil can be pulled out upwards without tools after the release mechanism has been actuated, and can be replaced by any other required coil of the same size.SpecificatonsCoil Voltage: 220 .. 240 V AC/DCSwitching Category: AC-2; AC-3Power Rating: 90 kWSwitching Current: 185 ASwitching Voltage: 400 V ACNumber of Poles: 3
3RT1056-6AP36
Ficha de datos
- Modelo
- 3RT1056-6AP36
- Marca
- SIEMENS
