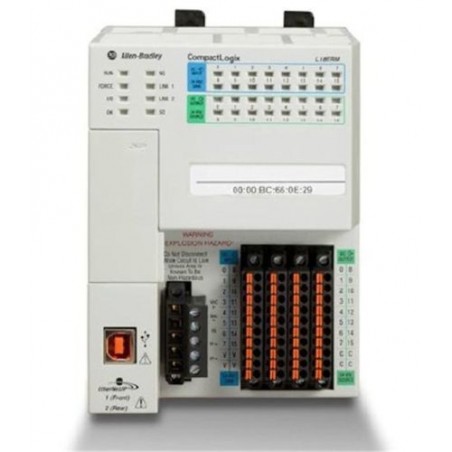

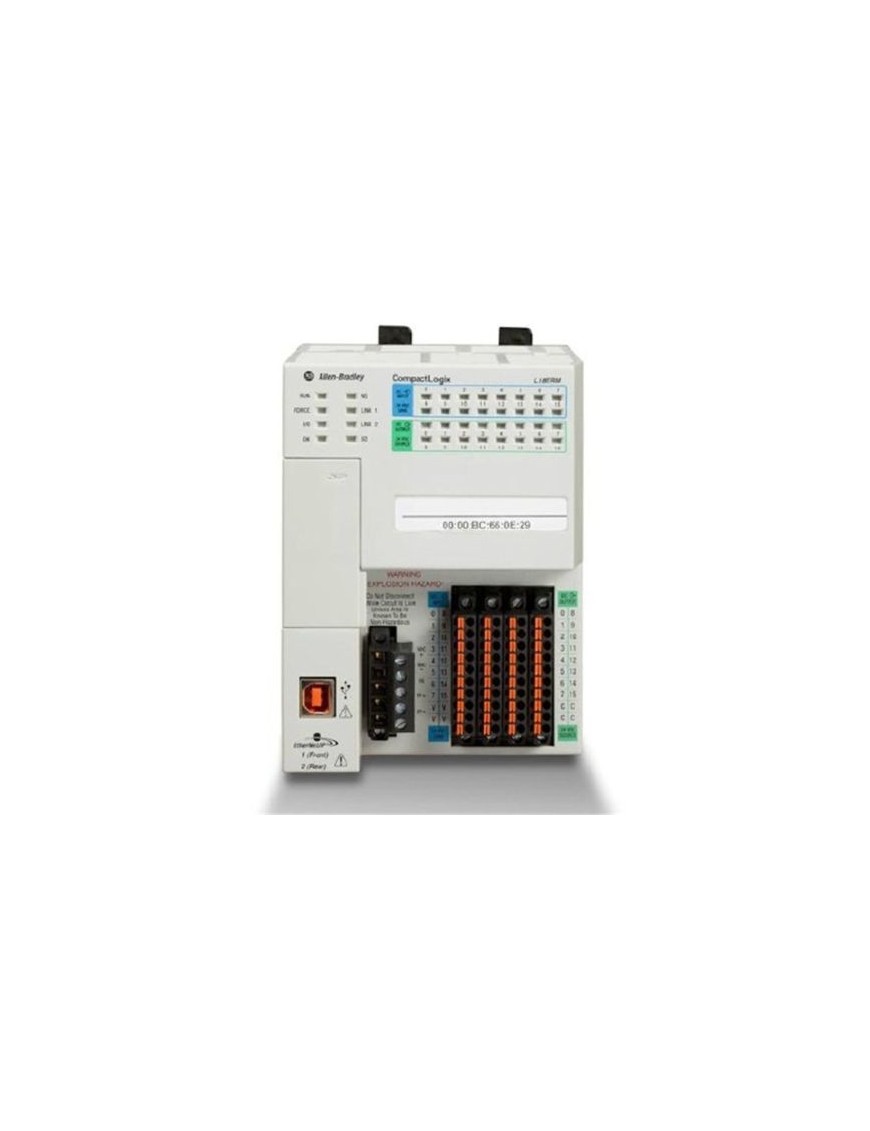

ALLEN BRADLEY 1769-L30ER

Plc Compactlogix 5370 L3 Controlador 1769 Serie

Control of local and distributed I/O modules Internal energy storage solution eliminating the need for a battery One USB port Support for local expansion modules Two EtherNet/IP ports Use of 1784-SD1 or 1784-SD2 secure digital (SD) card for nonvolatile flash memory

General

• Conducted RF immunity IEC 61000-4-6: 10Vrms with 1 kHz sine-wave 80% AM from 150 kHz…80 MHz
• Current draw @ 24V DC: 225mA
• Current draw @ 5V DC: 500 mA
• EFT/B immunity IEC 61000-4-4: ±3 kV at 5 kHz on communication ports
• Enclosure type rating: None (open-style)
• IEC temperature code: T5
• Isolation voltage: 30V (continuous), Basic Insulation Type, USB to system, Ethernet to
• Module location: Module location
• Module width: 100.00 mm(3.94 in.)
• North American temperature code: T5
• Number of I/O module banks, max: 3
• Number of local expansion modules, max: Eight 1769 Compact I/O? modules
• Optional flash memory: 1784-SD1 card with 1 Gb of available memory (shipped with controller)1784-SD2 card with 2 Gb of available memory (available for separate ordering)
