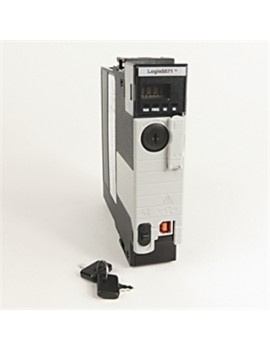

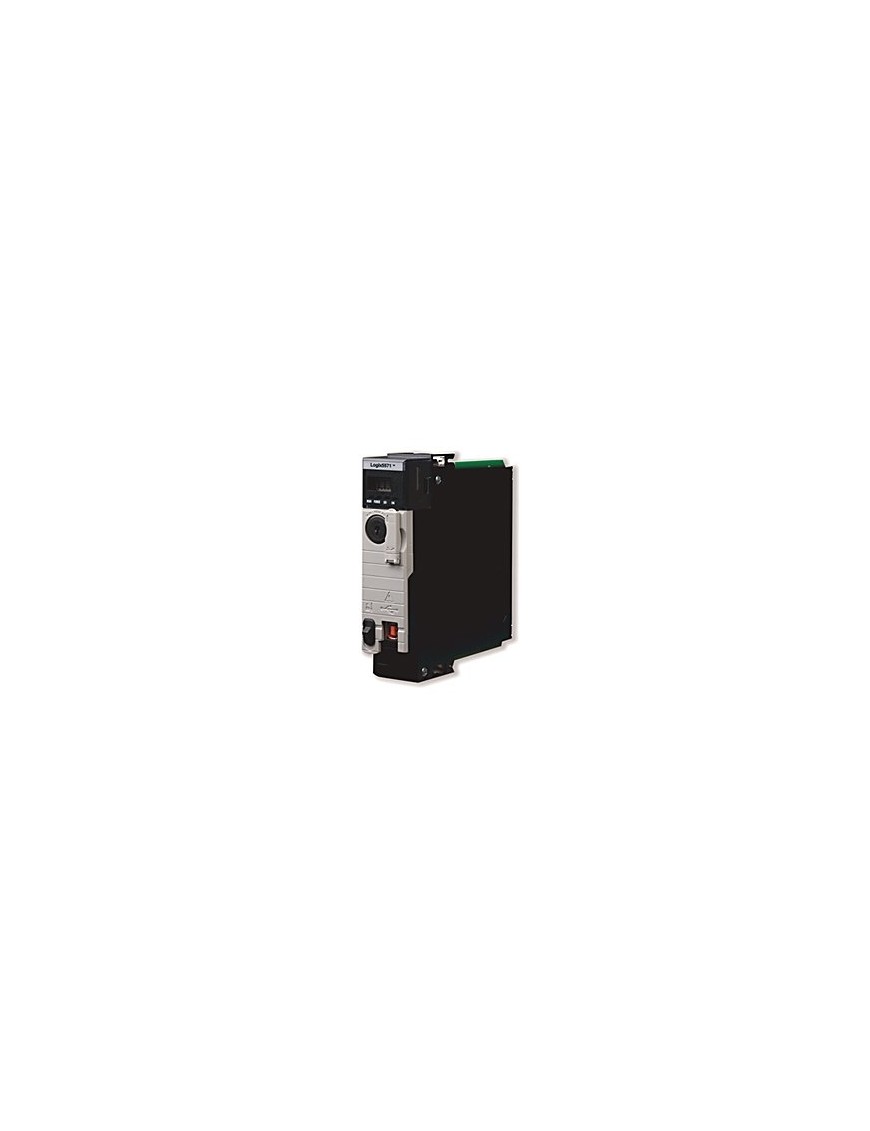

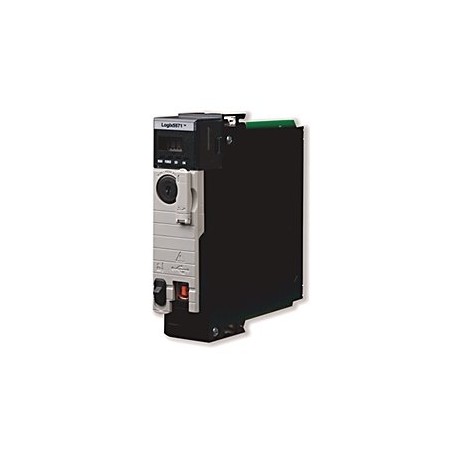

ControlLogix Processor with 2 Mbytes Memory
ControlLogix Processor with 2 Mbytes Memory
Product Description1756-L71 ALLEN BRADLEY CONTROLLOGIX PROCESSOR SER B Enclosure: None (open-style)Programming Languages: Relay ladder, Structured text, Function block, SFCOperating Temperature: 0 - 60 DEG CDisplay: 4 Character Alpha/NumericInterface: EtherNet/IP, ControlNet, DeviceNet, Data Highway Plus, Remote I/O, SynchLink™, Third-Party Process And Device Networks, 1 Port USBPower Dissipation: 2.5 WSub Brand: ControlLogix®Memory: 2 MB User Memory, 0.98MB I/O Memory, Optional Nonvolatile: 1 GB (1784-SD1 ships with every controller) 2 GB (1784-SD2)Power Supply: Current Draw: 5 MA At 1.2 VDC, 800 MA At 5.1 VDCItem Name: Programmable ControllerCommunication: USB Port: 2.0, Full Speed (12 MBPS), Programming, Configuration, Firmware Flash And On-Line Edits OnlyEnvironmental Condition: Relative Humidity: 5 - 95 PCT Noncondensing, Vibration: 2 G At 10 To 500 HZ, Shock Operating: 30 G, Shock Non-operating: 50 GFunction: 32 Tasks, 100 Programs/Task, Event Tasks: All Event TriggersIntegrated Motion: SERCOS Interface, Analog Options (Encoder Input, LDT Input, SSI input), EtherNet/IP (CIP Motion)Isolation: 30 V ContinuousProgrammable Capacity: Digital I/O: 128000 Maximum, Analog I/O: 4000 MaximumMounting: Chassis
Ficha de datos
ControlLogix Processor with 2 Mbytes Memory
