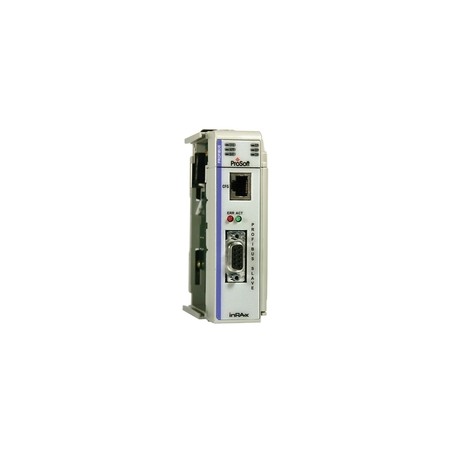

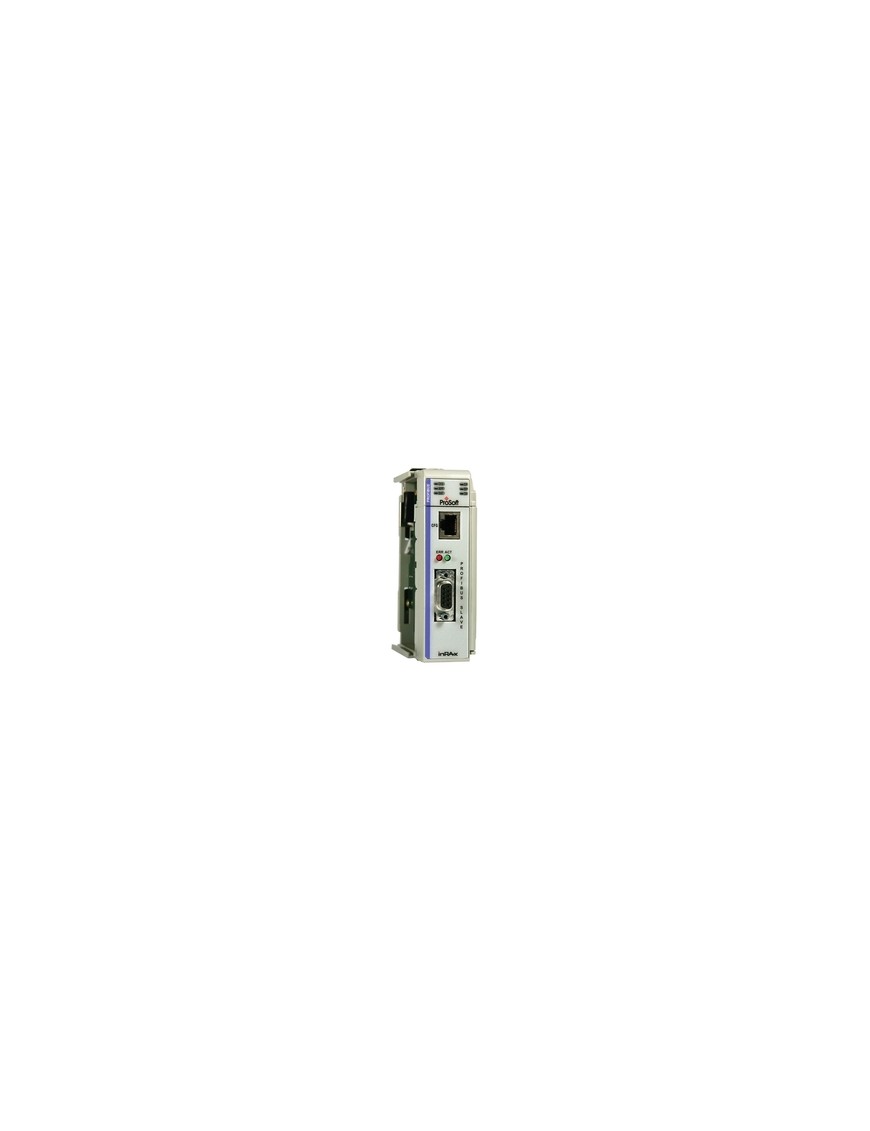

ALLEN BRADLEY MVI69-PDPS
Write your review
0,00 $
Sin impuestos
Slave Network Interface Module for CompactLogix
Slave Network Interface Module for CompactLogix
The PROFIBUS DP Slave protocol driver supports the PROFIBUS V0 Slave implementation, providing powerful data transfer capability between the module and CompactLogix processors. User configurable data mapping and DP port operation make the interface an easy to use and powerful data transfer tool.The MVI69 module Configuration/Debug Serial port connects a PC to the module for configuration, status, monitoring, and troubleshooting (Serial cable is included with product shipment). After editing on a PC, a configuration file is downloaded and stored on the MVI69 module.The PROFIBUS DP Slave gives access to the unit's input and output images with up to 244 bytes of Input and Output data, for a maximum of 400 bytes total. These Input and Output data blocks are mapped by the user within the module's data memory allowing maximum flexibility and data transfer with other protocols. SpecificationsSingle Slot - 1769 backplane compatibleThe module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and moduleLadder Logic is used for data transfer between module and processor. Sample ladder file included.Configuration data obtained from configuration text file downloaded to module. Sample configuration file included.Supports all CompactLogix processors: L20/L23/L30/L31/L32/L35, L43 and L45 (L43 and L45 supported with RSLogix 5000 v16.03 or later)Also supports MicroLogix 1500 LRP
MVI69-PDPS
Ficha de datos
- Modelo
- MVI69-PDPS
- Marca
- ALLEN BRADLEY
