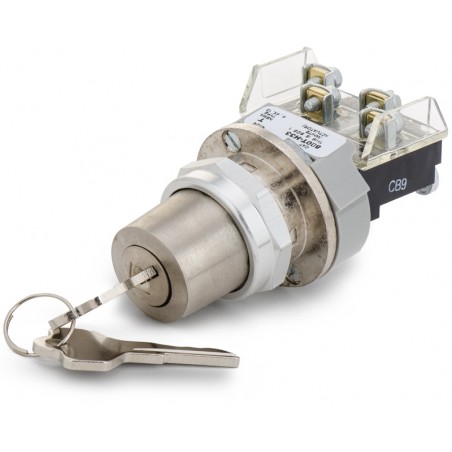

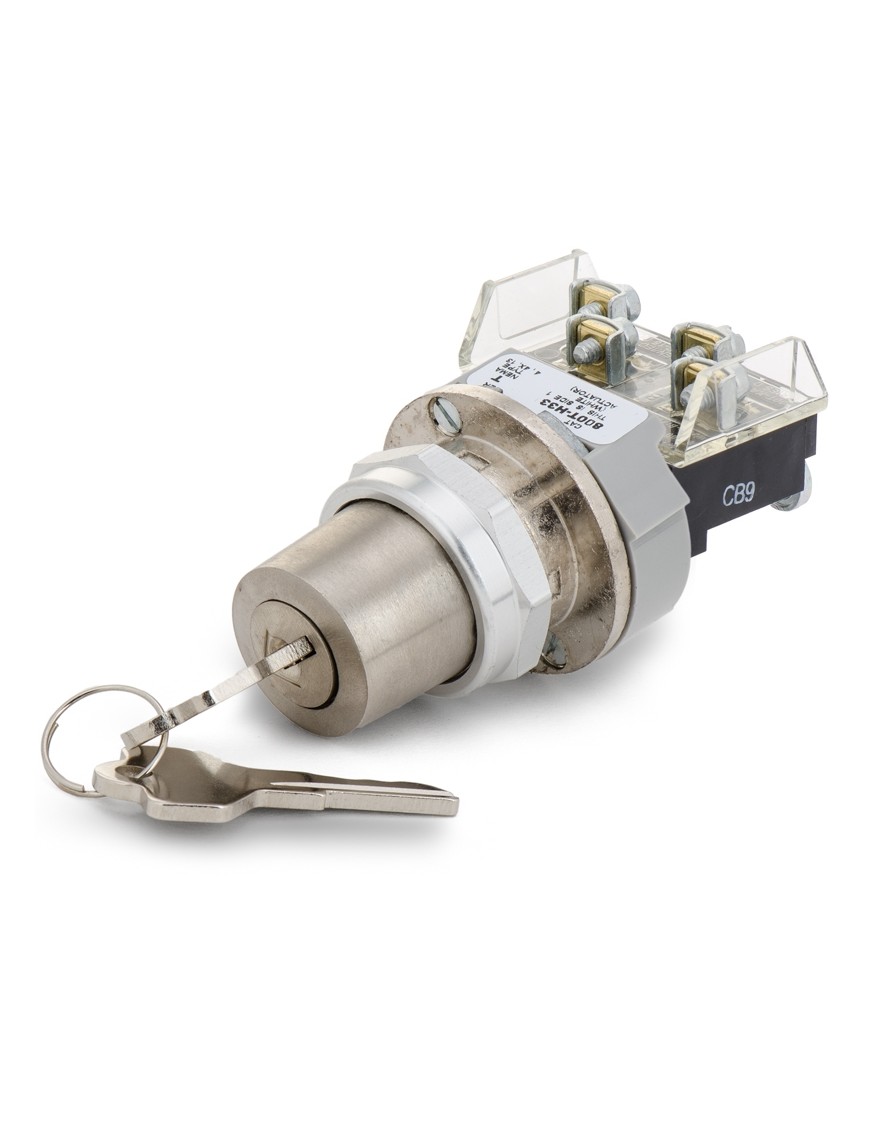

Cylinder Lock Selector Switch 2 Position
Cylinder Lock Selector Switch 2 Position
Application flexibility is offered with 2-position push-pull or 2-position push-pull/twist release configurations. Non-illuminated and illuminated operator options are available. Contact block versions are also available that provide IP2X finger-safe protection. Maintained Locks to Both Sides Standard Key D018 1 N.O. Normally Open & 1 N.C. Normally Closed Contact 30.5mm NEMA Type 4/13Technical Data:Rockwell AutomationAllen-Bradley800T-H33ACylinder Lock Selector Switch2 PositionMaintainedLock: BothStandard Key D0181 N.O. & 1 N.C. Contacts30.5mmNEMA Type 4/13SELECTOR SWITCH DATAHazardous Location NoFinger Safe Guards No GuardsKey Removal Position Maintained, Lock - Both, Std. KeyKey Options Std. KeyBlock Type StandardContact Blocks 1 N.O. - 1 N.C. ContactsCERTIFICATIONS AND APPROVALSUL Listed E14840, E10314; Guide #NKCR, NOIVCSA LR1234, LR11924, 22.2 #14CE 60947-5-1 Ficha técnica
Ficha de datos
Cylinder Lock Selector Switch 2 Position
