Chassis Adapter 17 Slot PSCA2/A
Chassis Adapter 17 Slot PSCA2/A

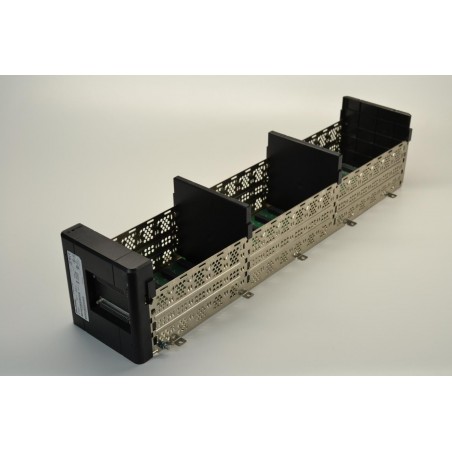

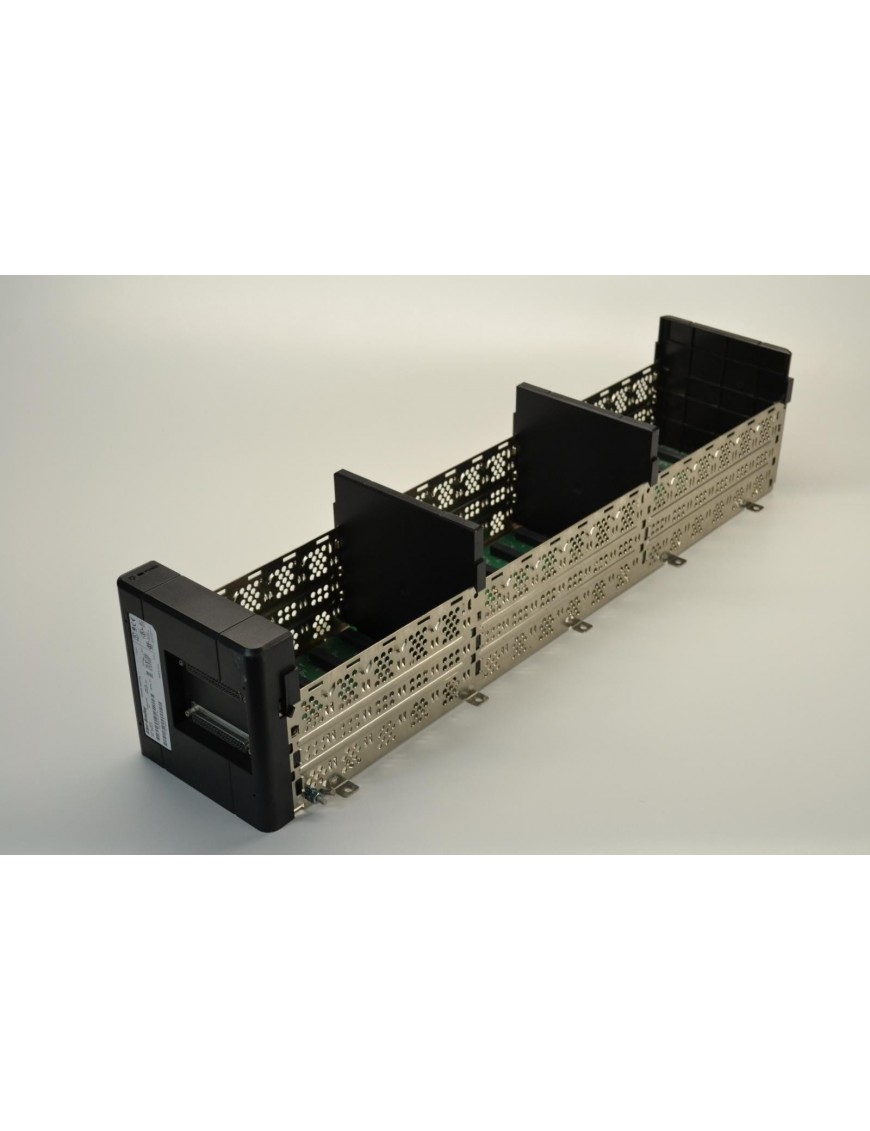

Allen Bradley 1756-A17 17-Slot ControlLogix Chassis, provides a high-speed communication path between modules and distributes power to each of the modules within the chassis, Series B1756-A17 ControlLogix Chassis, Number of Slots: 17; Backplane current, chassis/slot max @ 1.2V DC: 1.5 A/1.5 A; Backplane current, chassis/slot max @ 3.3V DC: 4 A/4 A; Backplane current, chassis/slot max @ 5.1V DC: 15 A/6 A; Backplane current, chassis/slot max @ 24V DC: 2.8 A/2.8 A; Power dissipation: 6.1 BTU/hr; Power consumption: 1.8 W; Dimensions (WxHxD): 738 x 169 x 145 mm (29.06 x 6.65 x 5.71 in.); Cabinet size (WxHxD), min: 914 x 762 x 203 mm (36 x 30 x 8 in.); Weight, approx.: 2.20 kg (4.8 lb).
Ficha de datos
Chassis Adapter 17 Slot PSCA2/A
