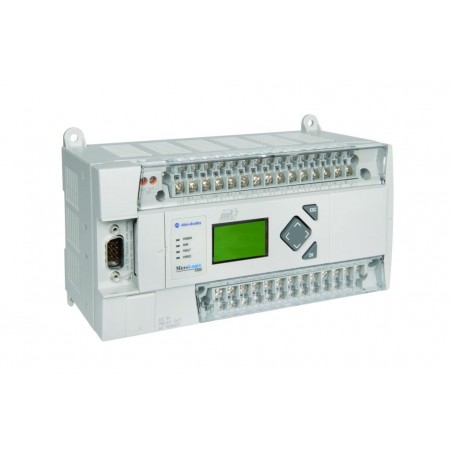

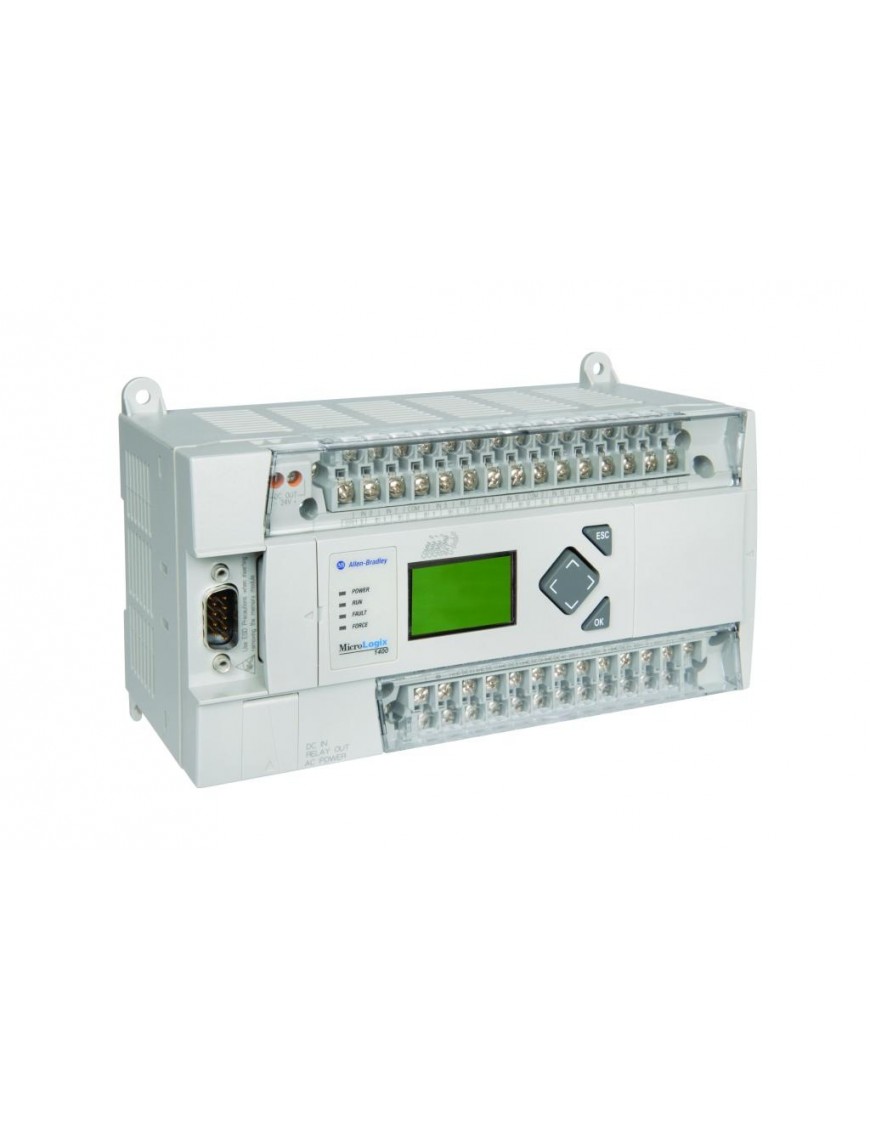

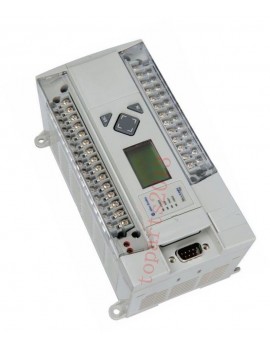

PLC MicroLogix 1400
PLC MicroLogix 1400
The MicroLogix™ 1400 family of small programmable logic controllers combines the features of the MicroLogix 1100, such as EtherNet/IP, online editing, and a built-in LCD, and adds enhanced features, such as: higher I/O count, faster High Speed Counter/PTO and enhanced network capabilities. Up to 7 expansion I/O modules for a maximum of 256 discrete I/OUses 1762 MicroLogix expansion I/O modules - same as ML 1100Up to 6 embedded 100 kHz highspeed counters (dc input CPUs)2 Serial ports with DF1/ DH485/Modbus RTU/DNP3/ASCII supportEthernet port with EtherNet/IP, DNP3 over IP and web server and emailBuilt-in LCD with backlight allowing configuration and status view SpecificationsDepth 90mmFor Use With MicroLogix 1400 SeriesInput Type DigitalLength 87mmManufacturer Series 1766Maximum Operating Temperature +60°CMinimum Operating Temperature -20°CNumber of I/O 32Number of Inputs 20Number of Outputs 12Output Type RelayWidth 180mm
Ficha de datos
PLC MicroLogix 1400
